Original price was: $9,997.00.$9,397.00Current price is: $9,397.00.
3 in stock

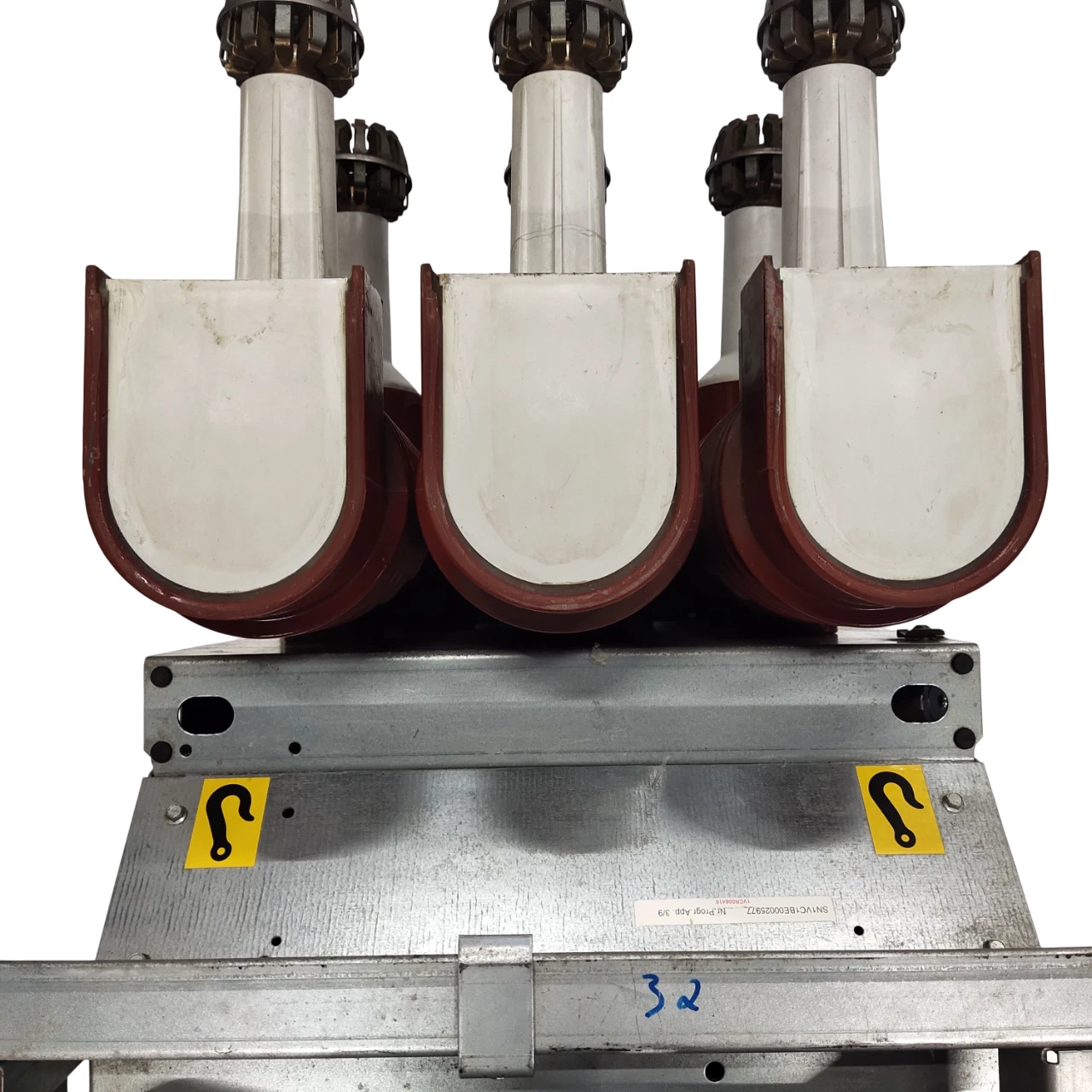

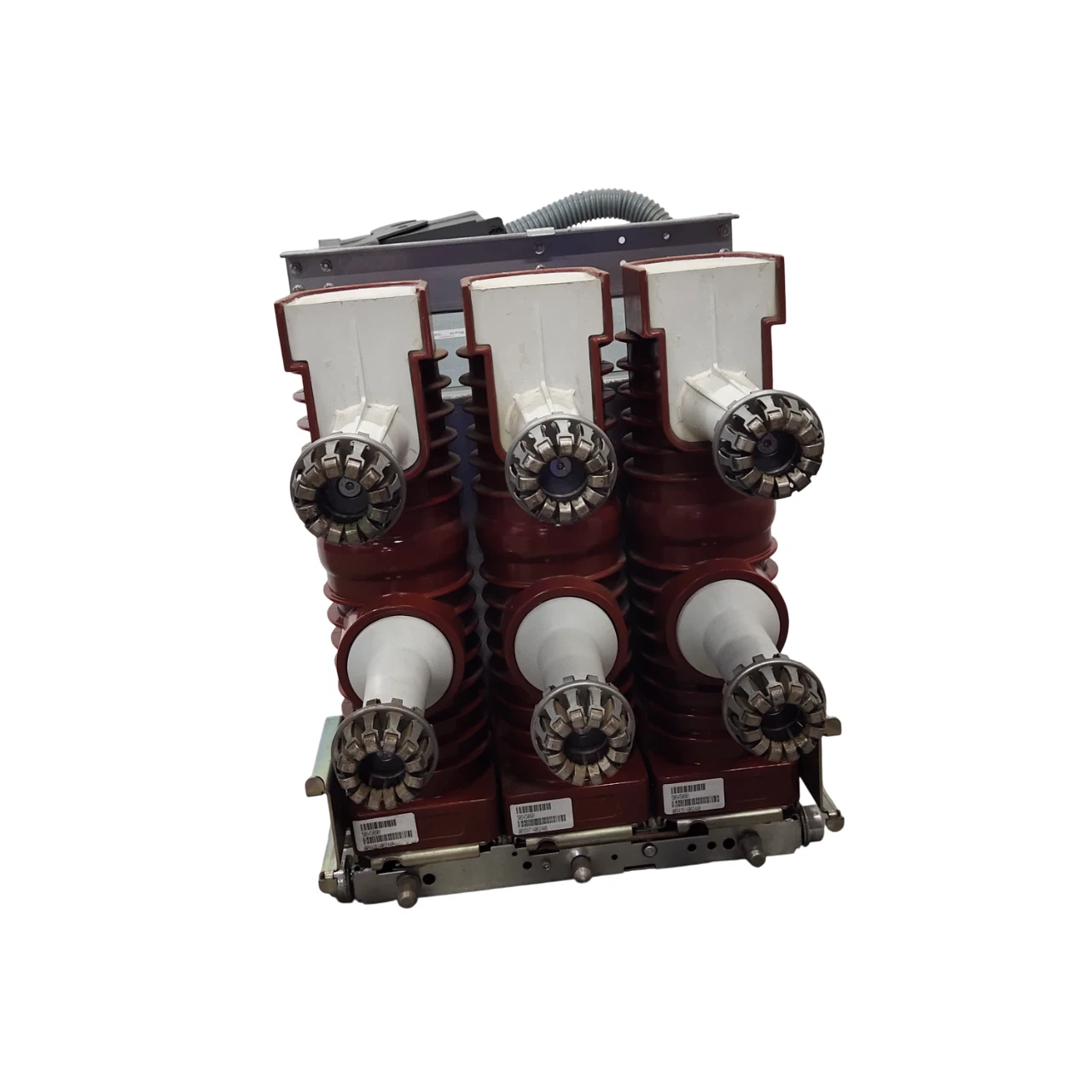

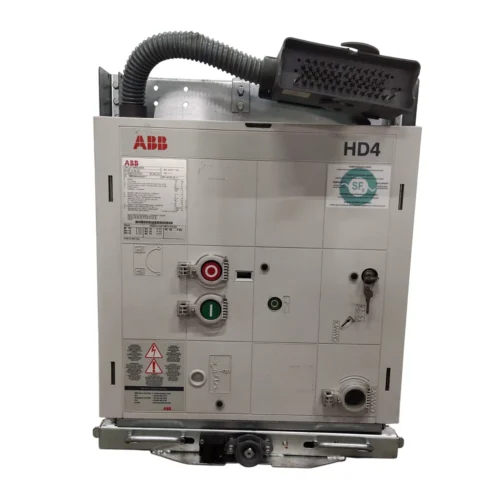

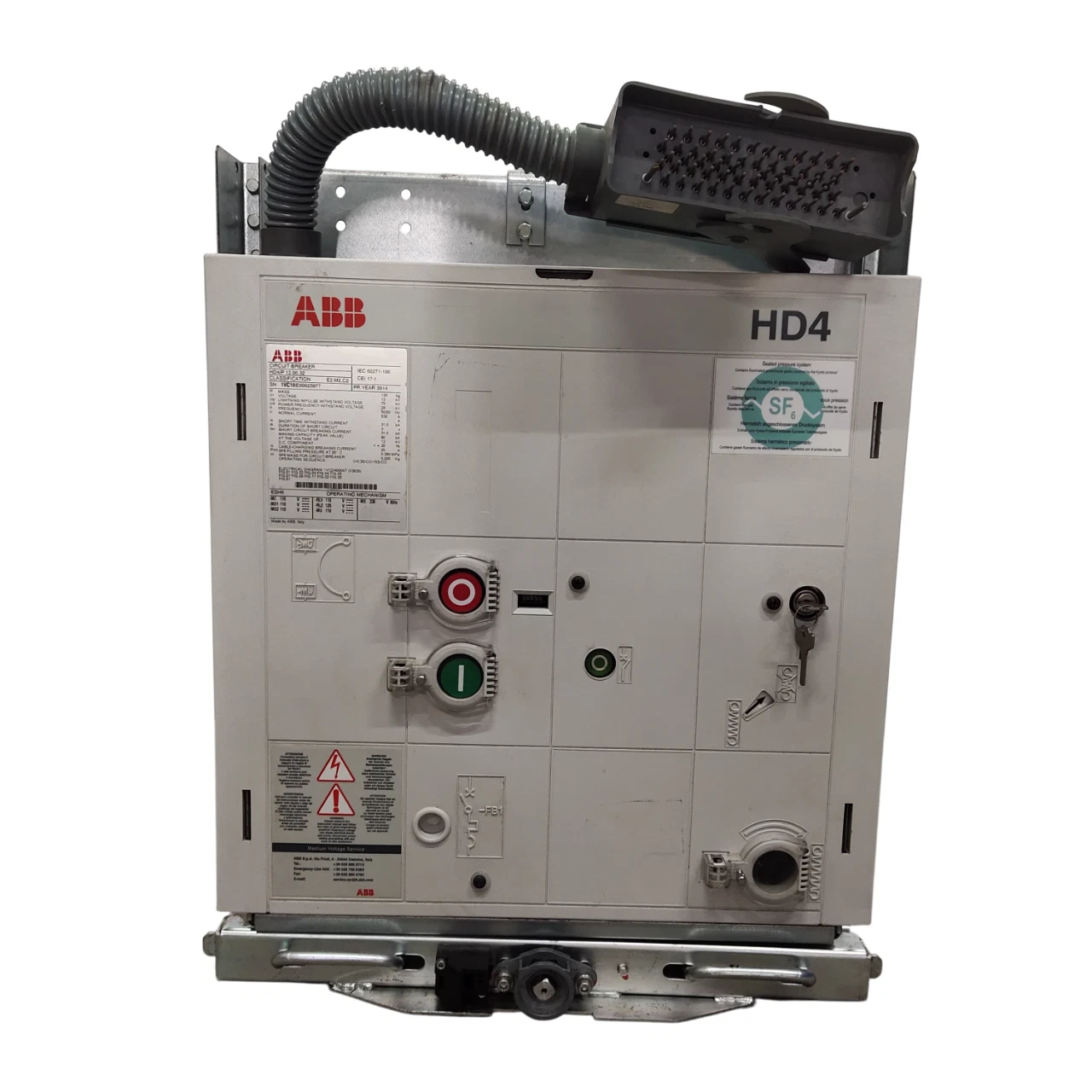

ABB

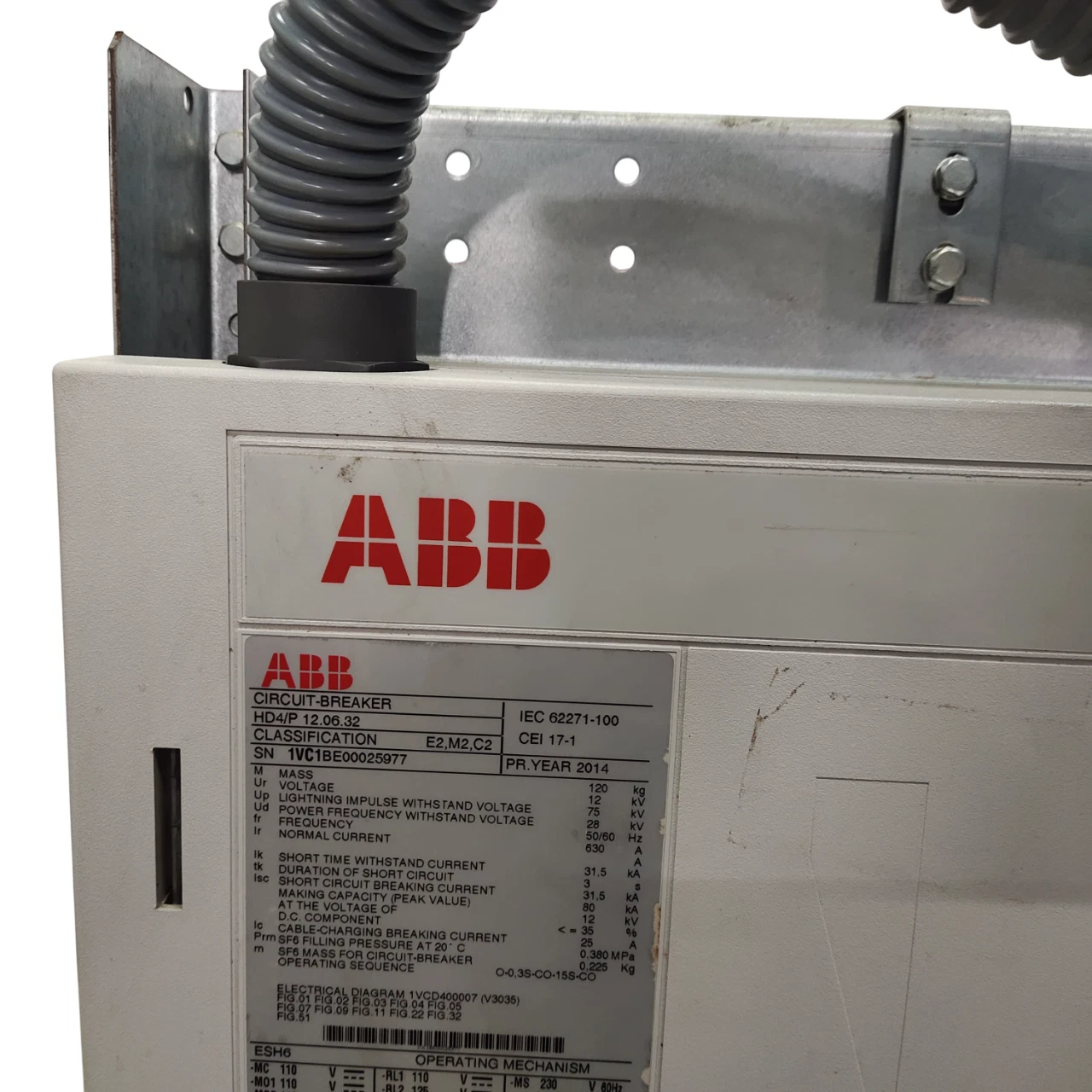

HD4/P 12.06.32
CIRCUIT-BREAKER
CLASSIFICATION E2,M2, C2
IEC 62271-100
CEI 17-1
PR.YEAR 2014
M MASS 120KG
Ur VOLTAGE 12 KV
UP LIGHTNING IMPULSE WITHSTAND VOLTAGE 75KV
Ud POWER FREQUENCY WITHSTAND VOLTAGE 28KV
Fr FREQUENCY 50/60HZ
Ir NORMAL CURRENT 630A
Fk SHORT TIME WITHSTAND CURRENT 31.5 KA
Tk DURATION OF SHORT CIRCUIT 3s
ISC SHORT CIRCUIT BREAKING CURRENT 31.5 KA
MAKING CAPACITY (PEAK VALUE) 80 KA
AT THE VOLTAGE OF 12 KV
D.C. COMPONENT <=35 %
IC CABLE-CHARGING BREAKING CURRENT 25A

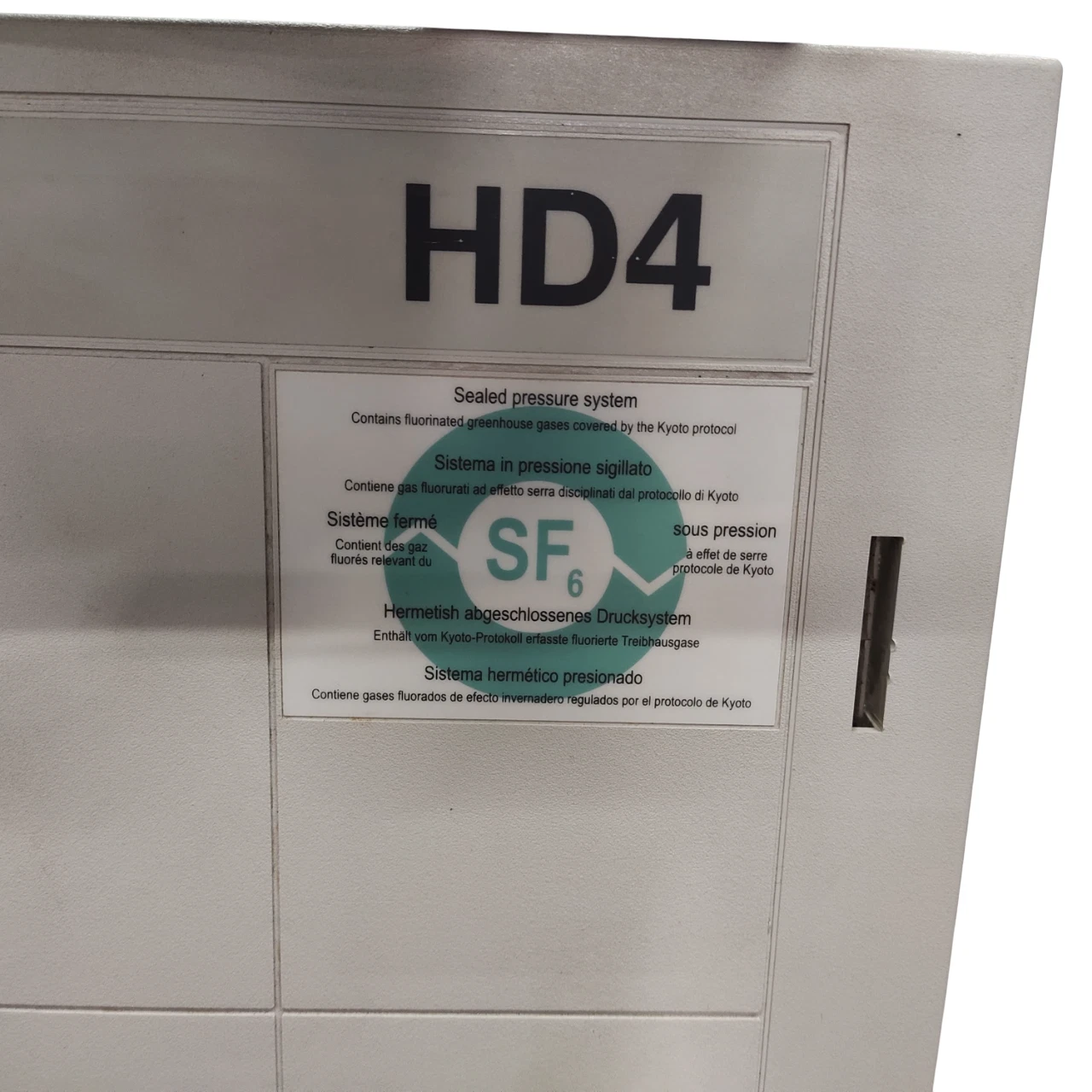

Prm SF6 FILLING PRESSURE AT 20 C 0.380 MPa
M SF6 MASS FOR CIRCUIT-BREAKER 0.225 Kg
M SF6 MASS FOR CIRCUIT-BREAKER
OPERATING SEQUENCE 0-0.3S-CO-15S-CO
Made by ABB, Italy
All taxes & Import Duties and Custom charges at destination country to be paid by buyer (Not included in price).
