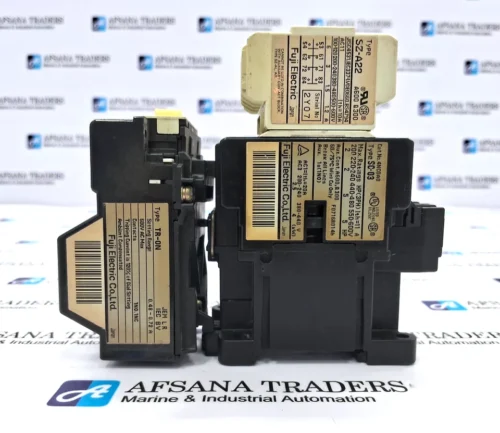

FUJI ELECTRIC | SZ-A22 | SC-03 | TR-ON | CONTACTOR & CONTACT BLOCK WITH RELAY

FUJI ELECTRIC | SZ-A22 | SC-03 | TR-ON | CONTACTOR & CONTACT BLOCK WITH RELAY

FUJI ELECTRIC

COIL VOLTAGE:

100V         50HZ

100-110V 60HZ

SZ-A22

A600 Q.300

JISC4531

IEC337-1

VDE0660

BS4794

AC11  ITH=10A

100-120 200-240 380-480 500-600V

SC-03

MAX. RATINGS HP(3PH) ITH=11 A

200 220-240 440-480 550-600V

AUX. CONT. A600,Q300

 60/75°C WIRE CU ONLY

AC1=ITH=20A

AC3 200-240

380-440V

TR-ON

SETTING RANGE: 0.48 0.72 A

600V AC MAX

CONTACTS: 1NO.1NC

TRIPPING CURRENT IS 120% OF DIAL SETTING

CONTACTOR & CONTACT BLOCK WITH RELAY

WEIGHT: 0.470KG APPROX

REFERENCE NO.: A46-Q4
