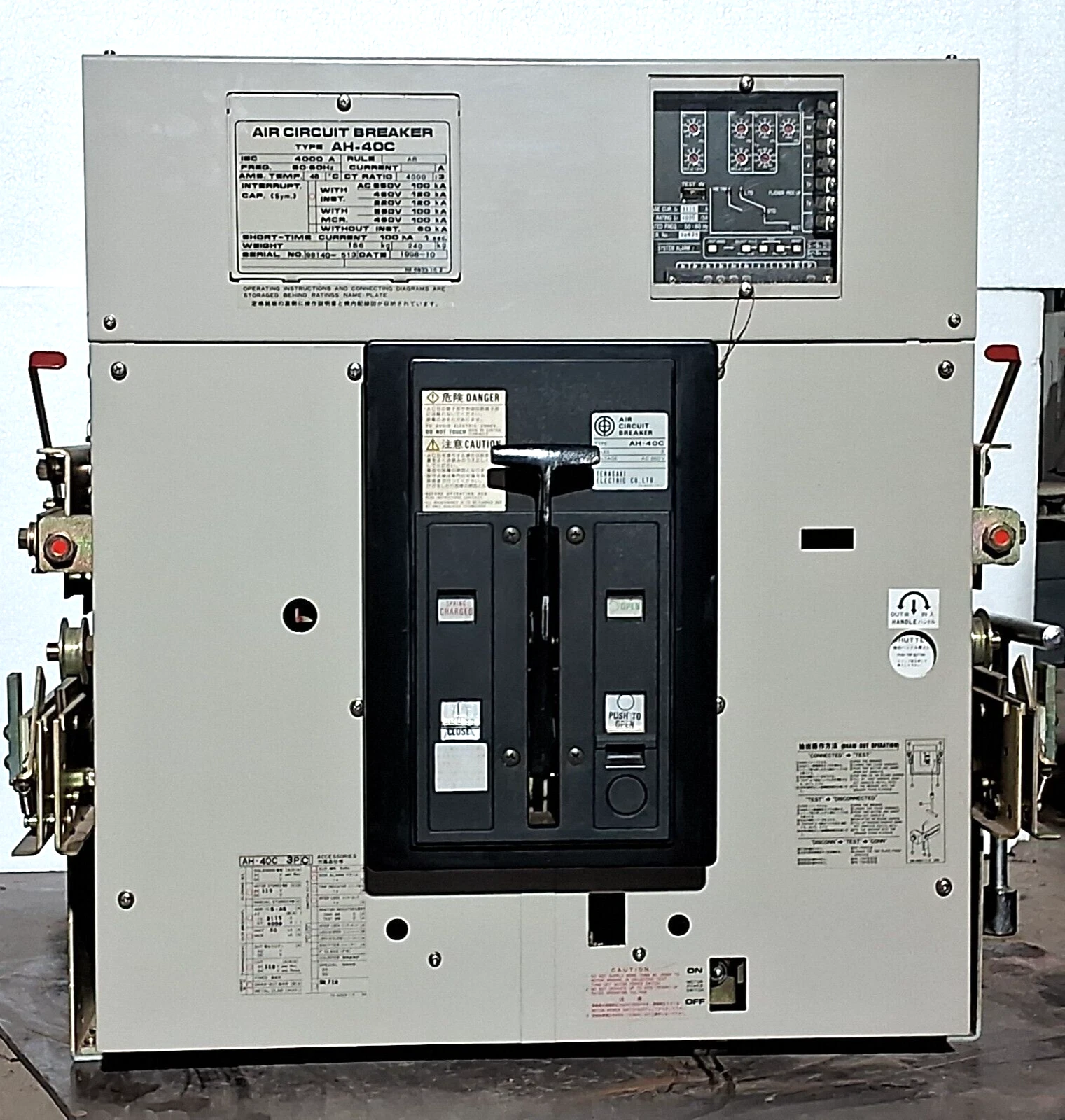

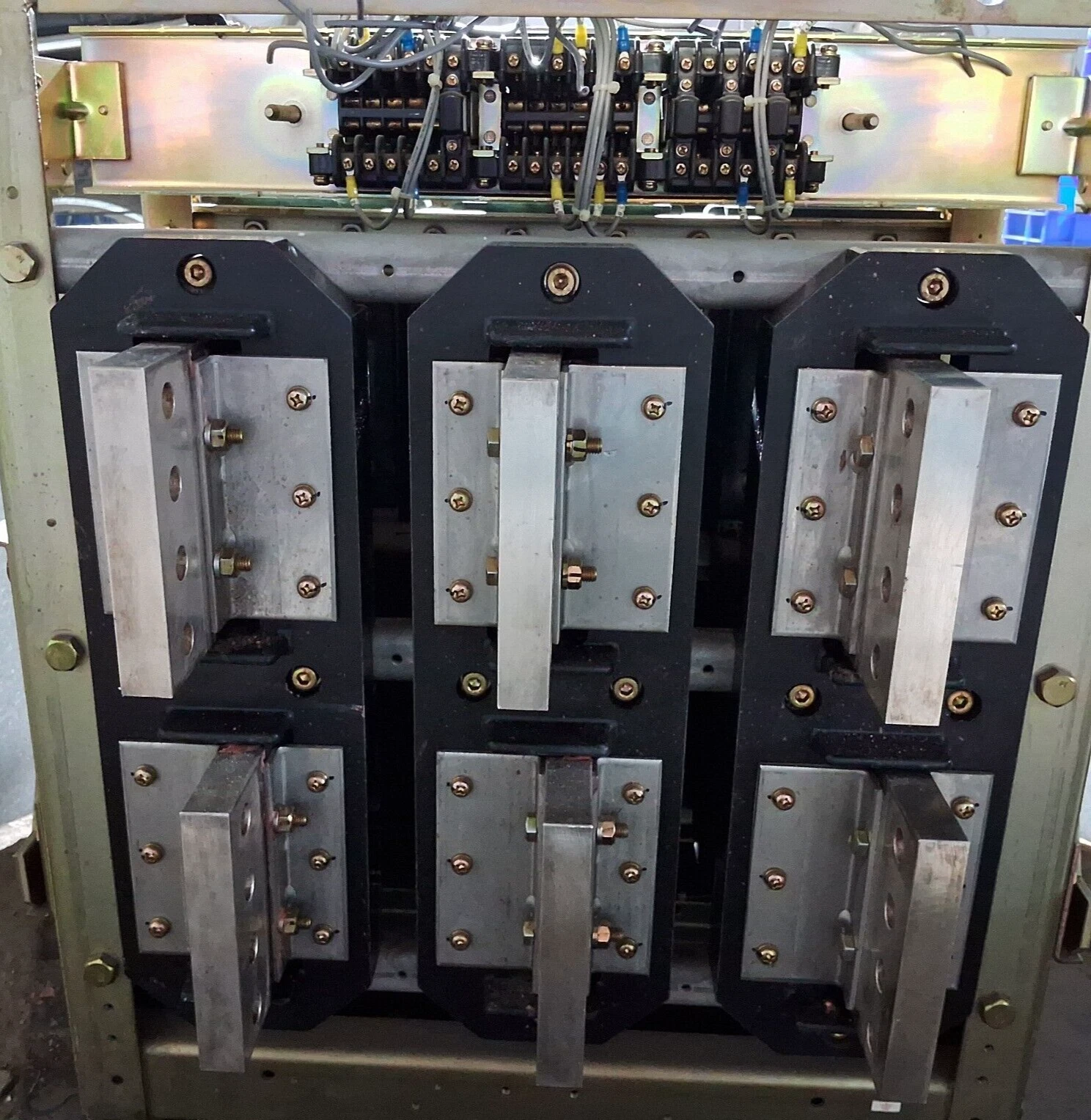

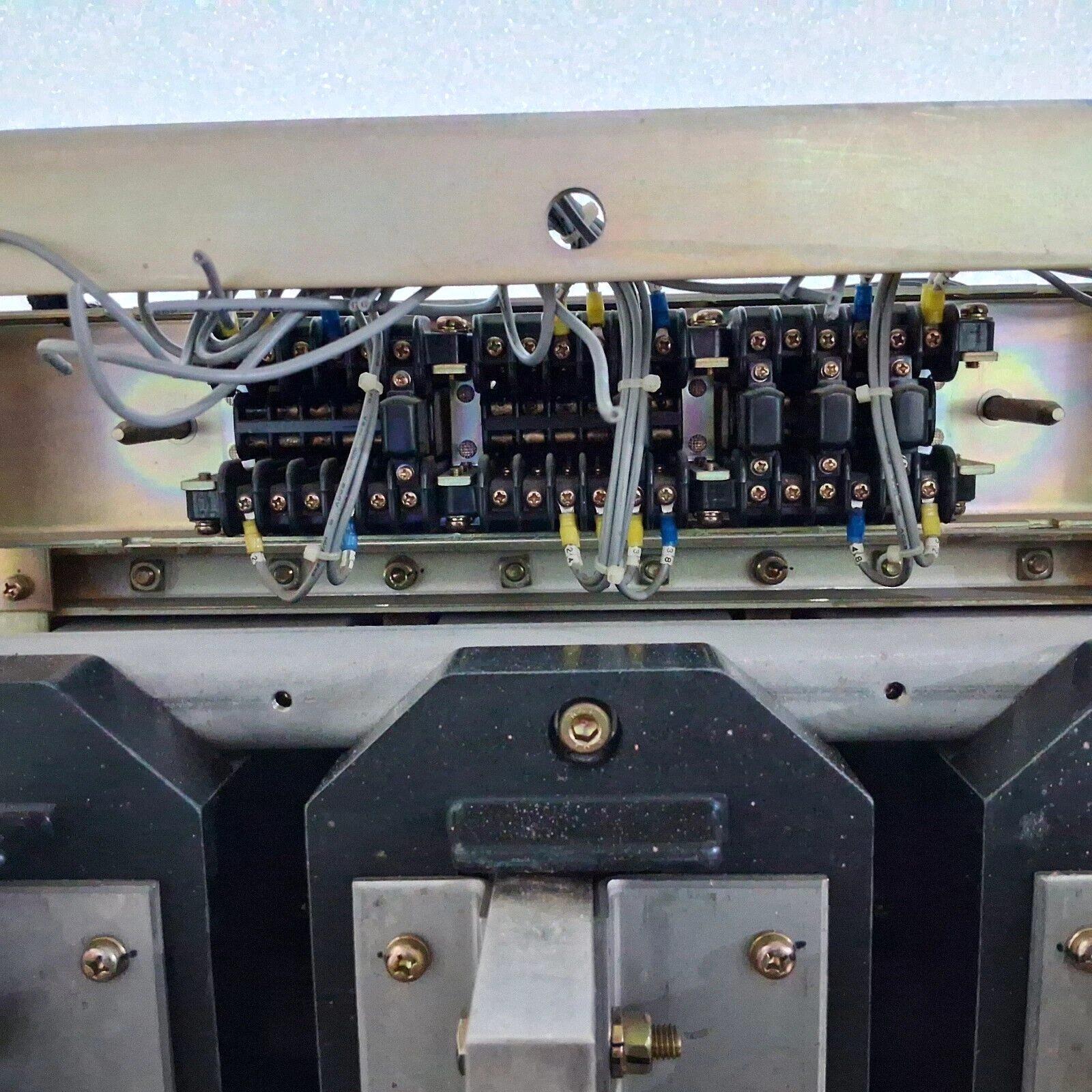

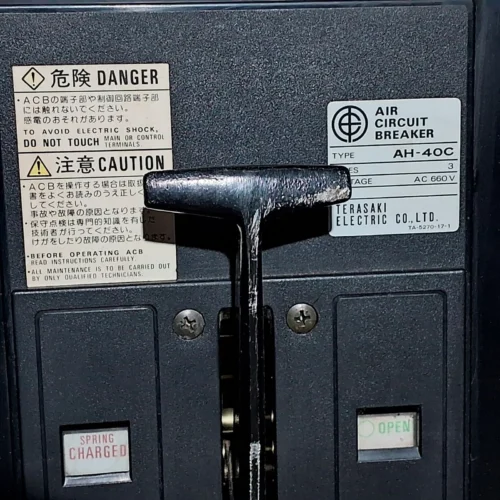

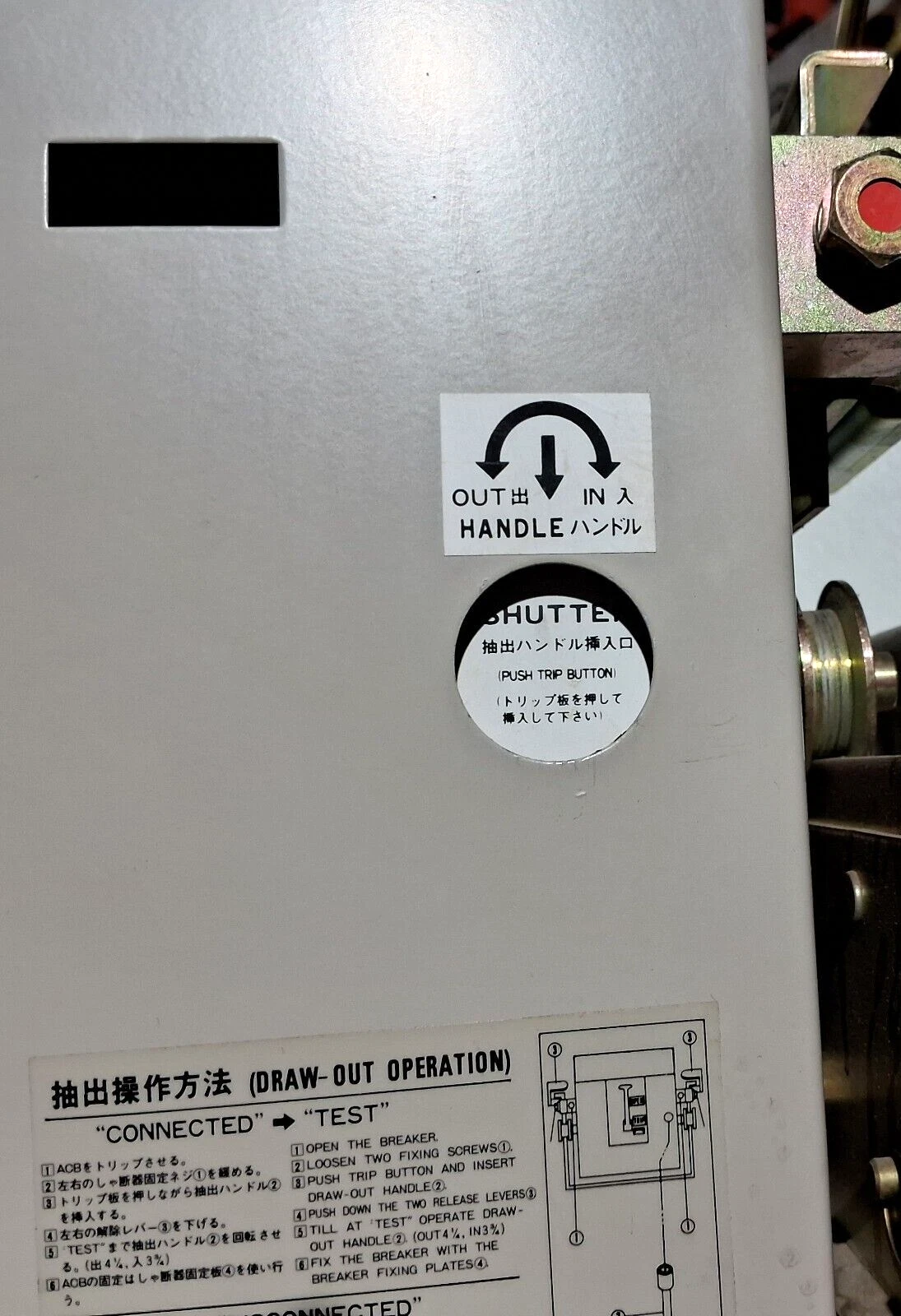

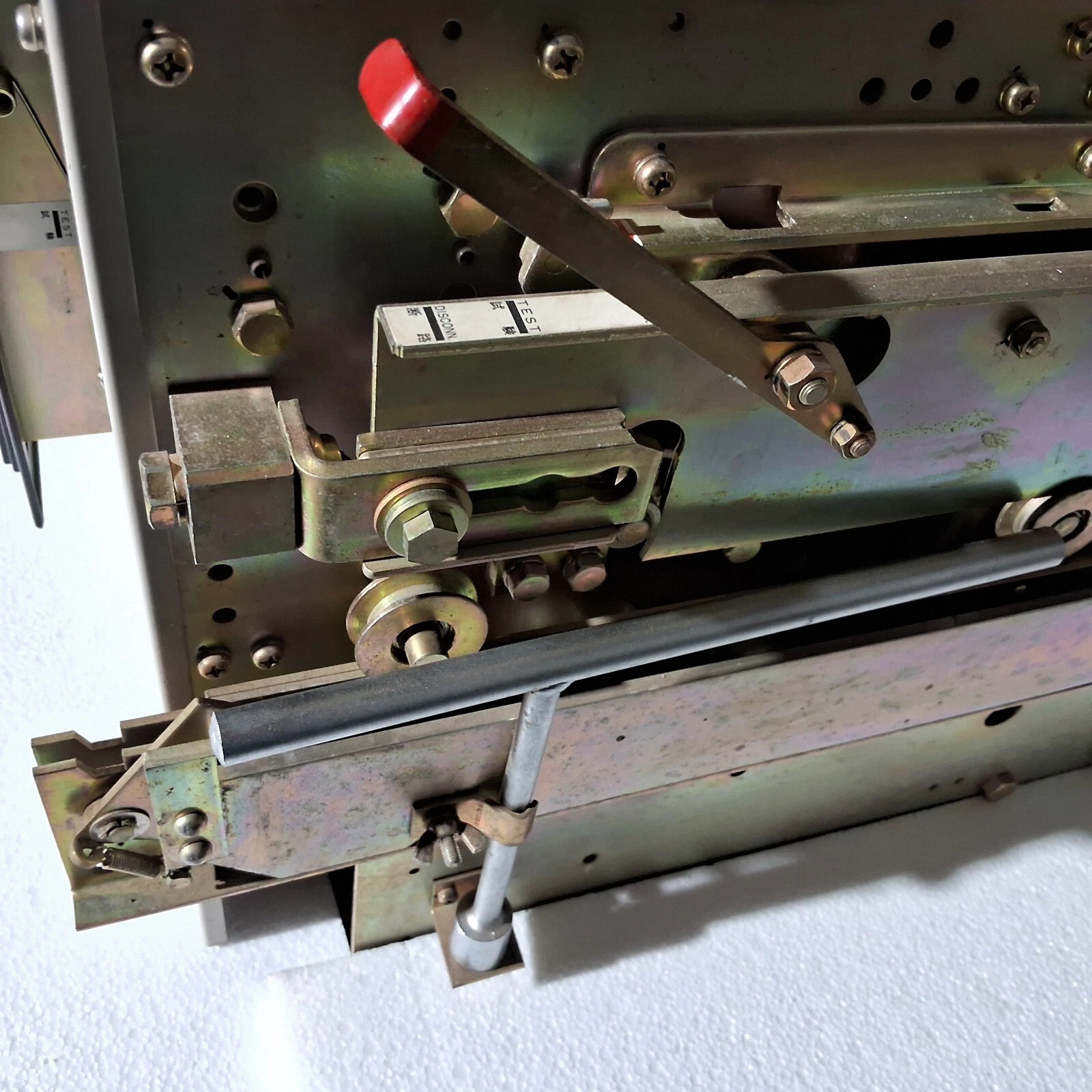

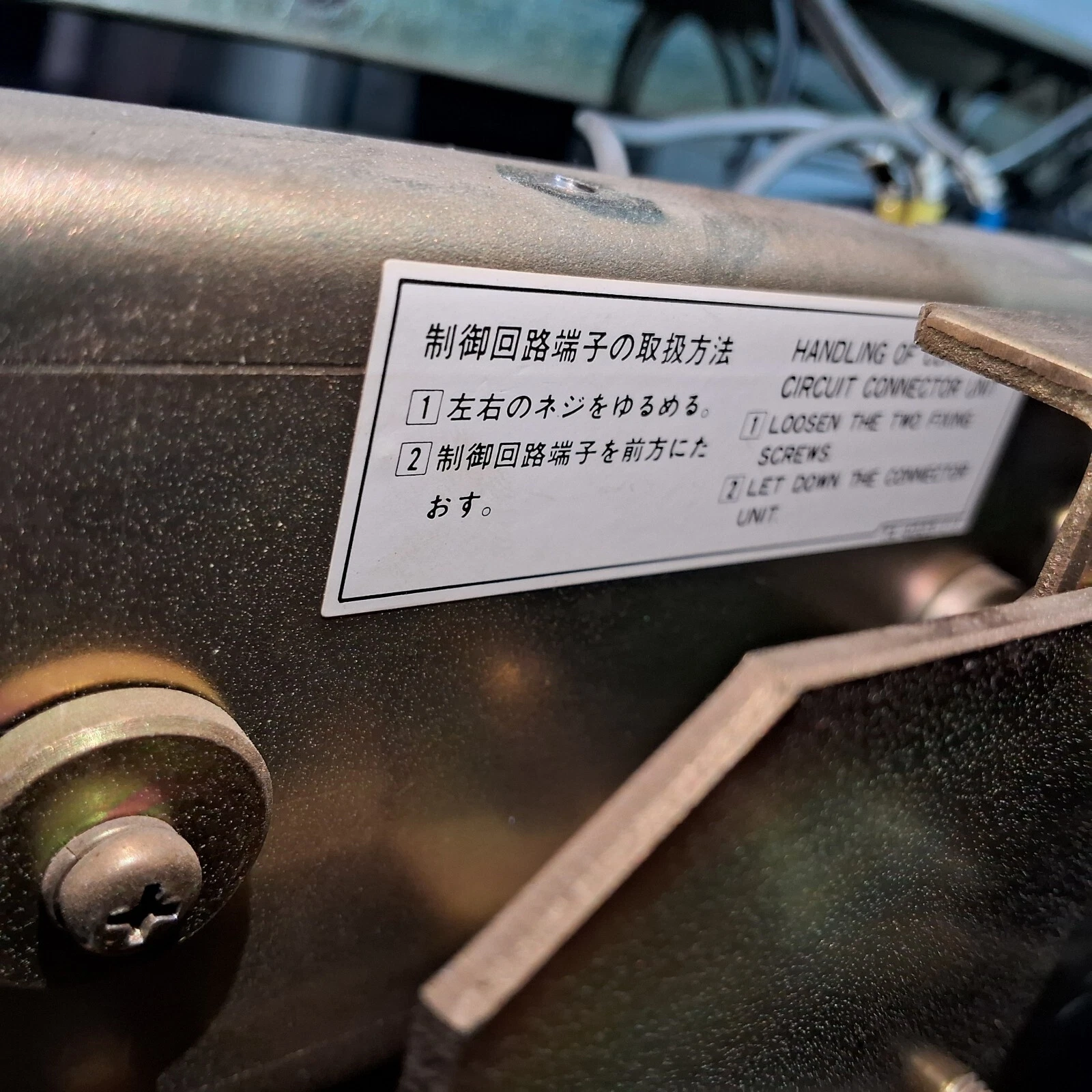

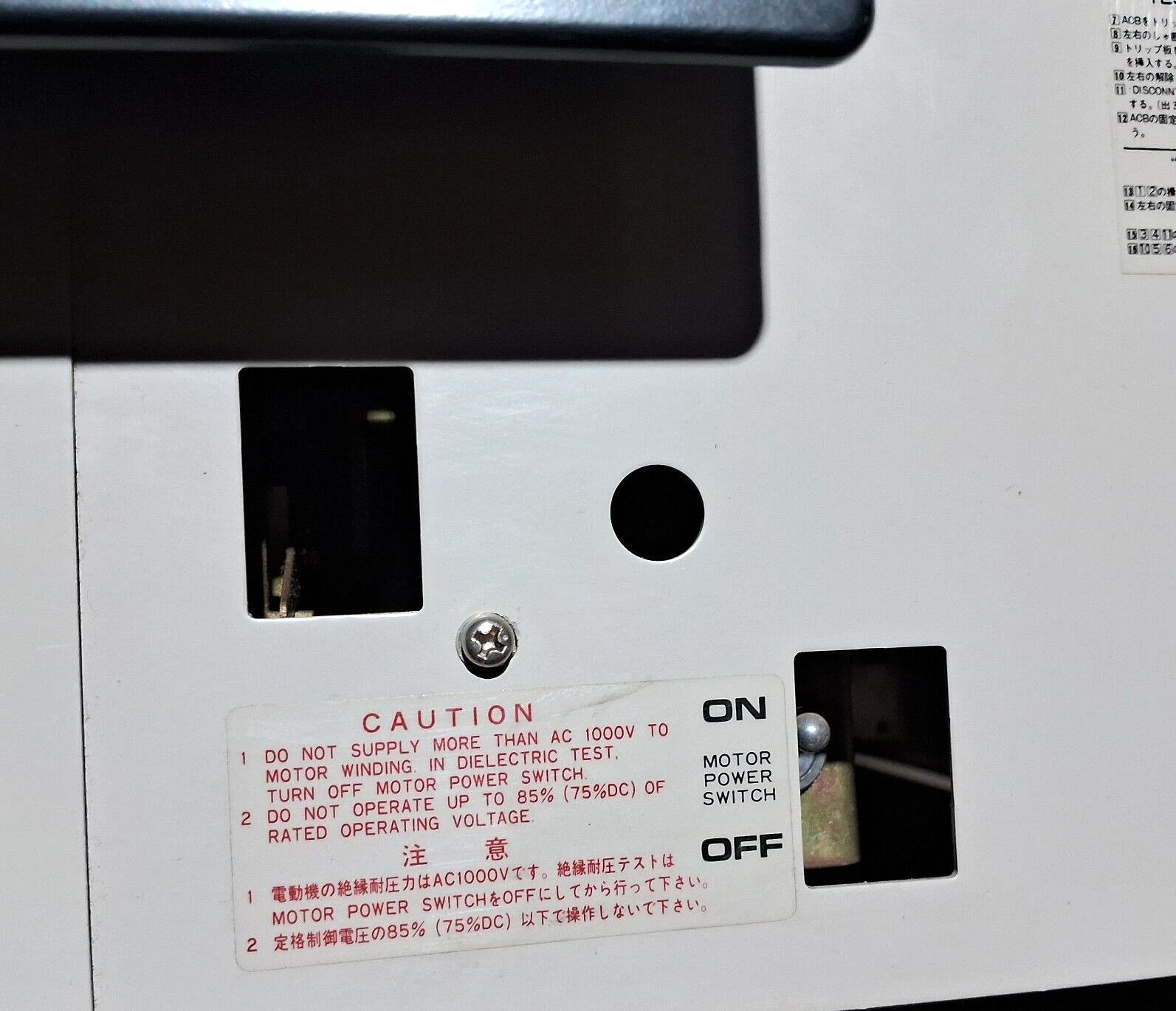

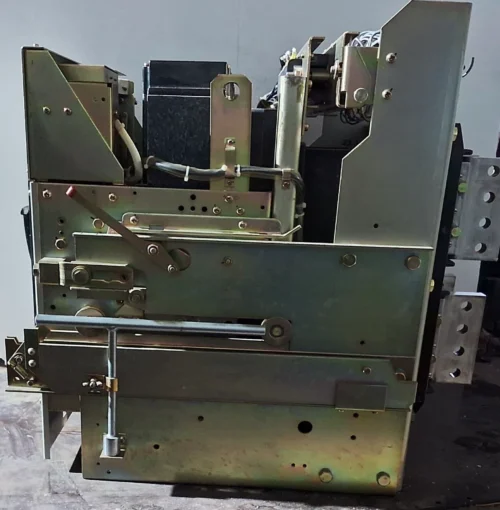

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 2

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 3

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 4

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 5

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 6

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 7

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 8

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 9

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 10

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 11

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 12

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 13

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 14

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 15

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 16

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 17

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 18

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 19

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 20

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 21

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 22

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 23

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT - Image 24

TERASAKI AH-40C 4000A AIR CIRCUIT BREAKER AC 550V 100KA 3 POLES WITH UVT

Original price was: $9,899.00.Current price is: $9,305.00.

Technical Specifications

SKU

:

BA144

Part Number

:

AH-40C

Condition

:

Used

Weight

:

240 KGS

Description

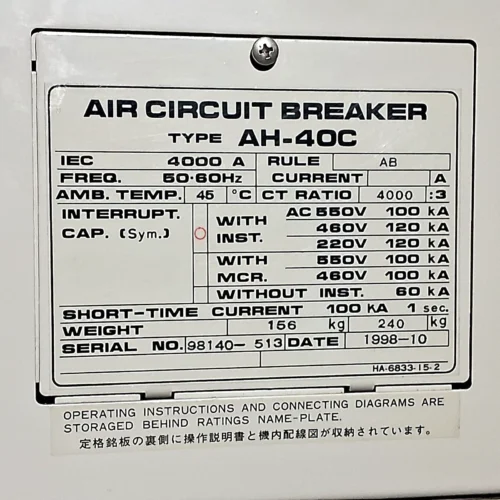

TERASAKI ELECTRIC

TYPE: AH-40C

IEC: 4000A

FREQ.: 50.60HZ

AMB. TEMP.: 45.C

RULE CURRENT AB

CT RATIO: 4000:3

INTERRUPT CAP.: WITH INST. AC 550V 100KA

460V 120KA

220V 120KA

SHORT-TIME CURRENT: 100KA 1 SEC.

DATE: 1998-10

TYPE: AH-40C

3 POLES

VOLTAGE: AC 660 V

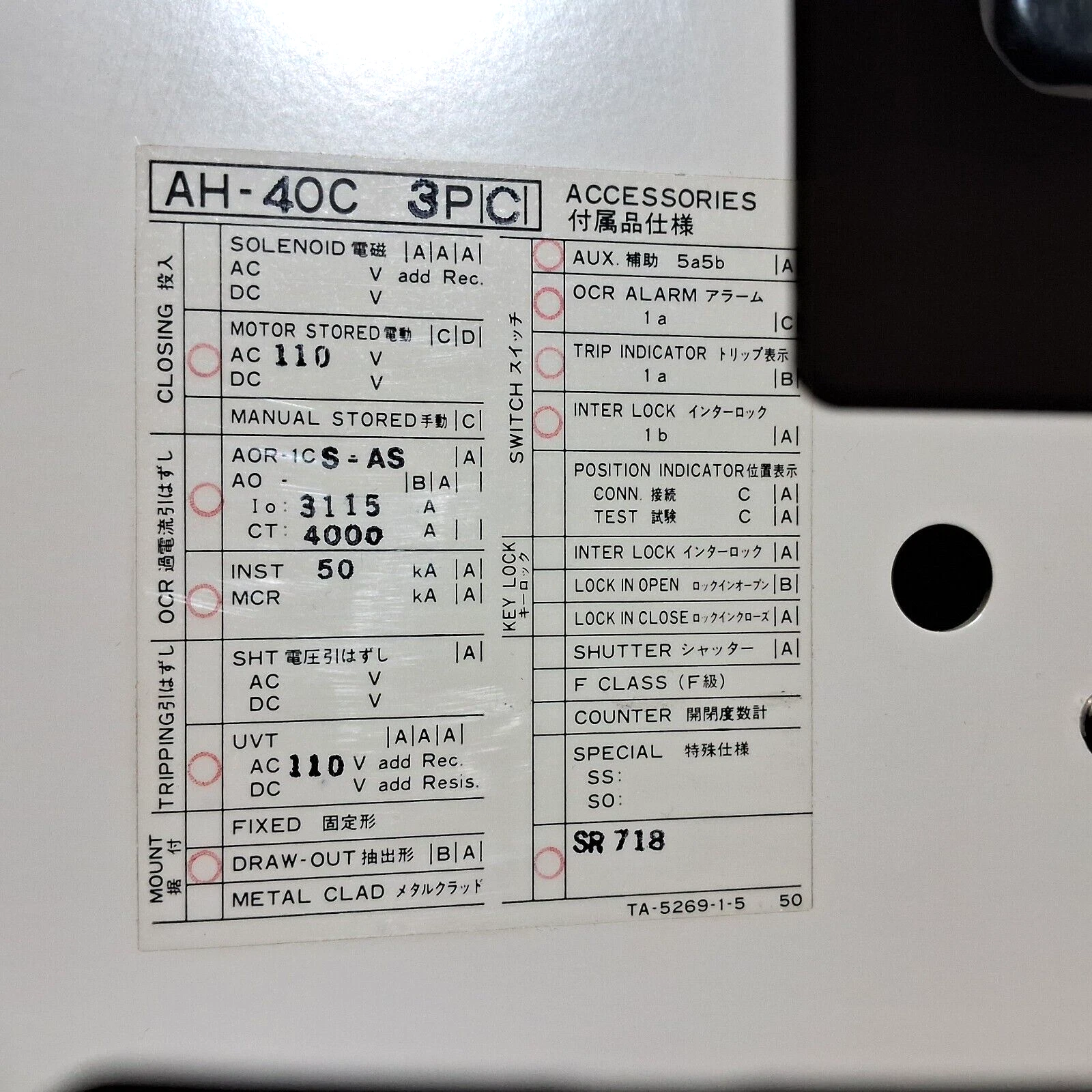

AH-40C 3P|C|

MOTOR STORED: AC 110V

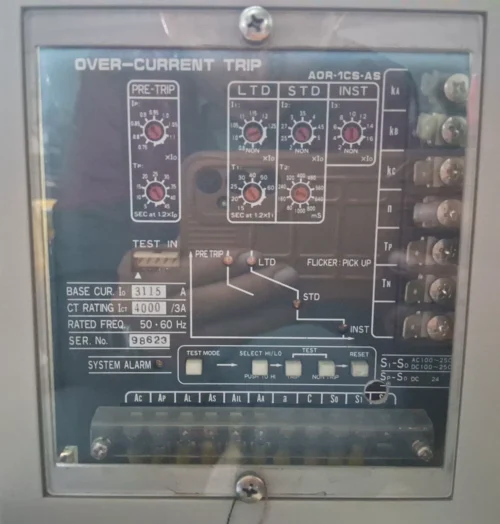

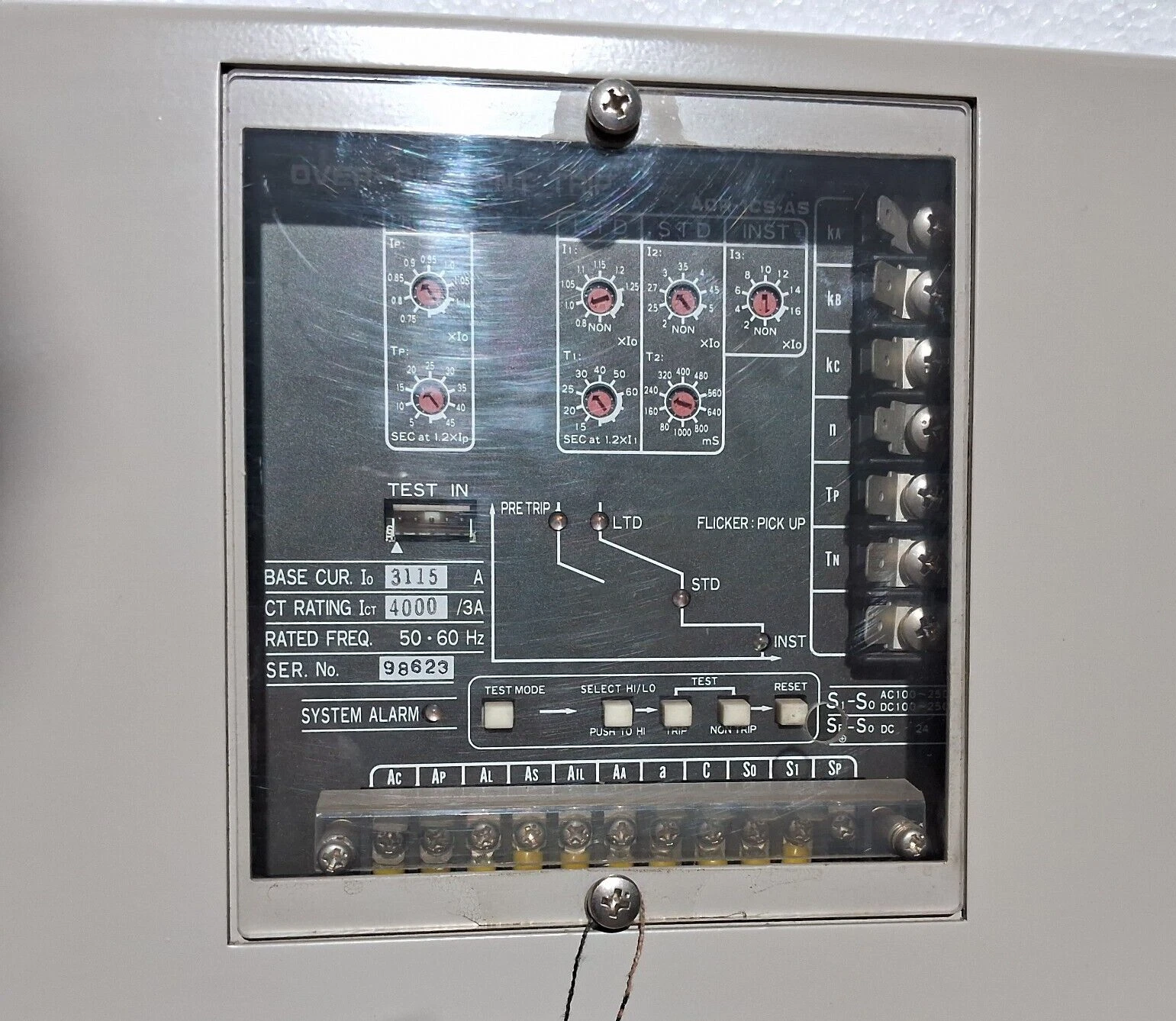

AOR-1CS-AS

IO: 3115 A

CT: 4000 A

INST MCR: 50 KA

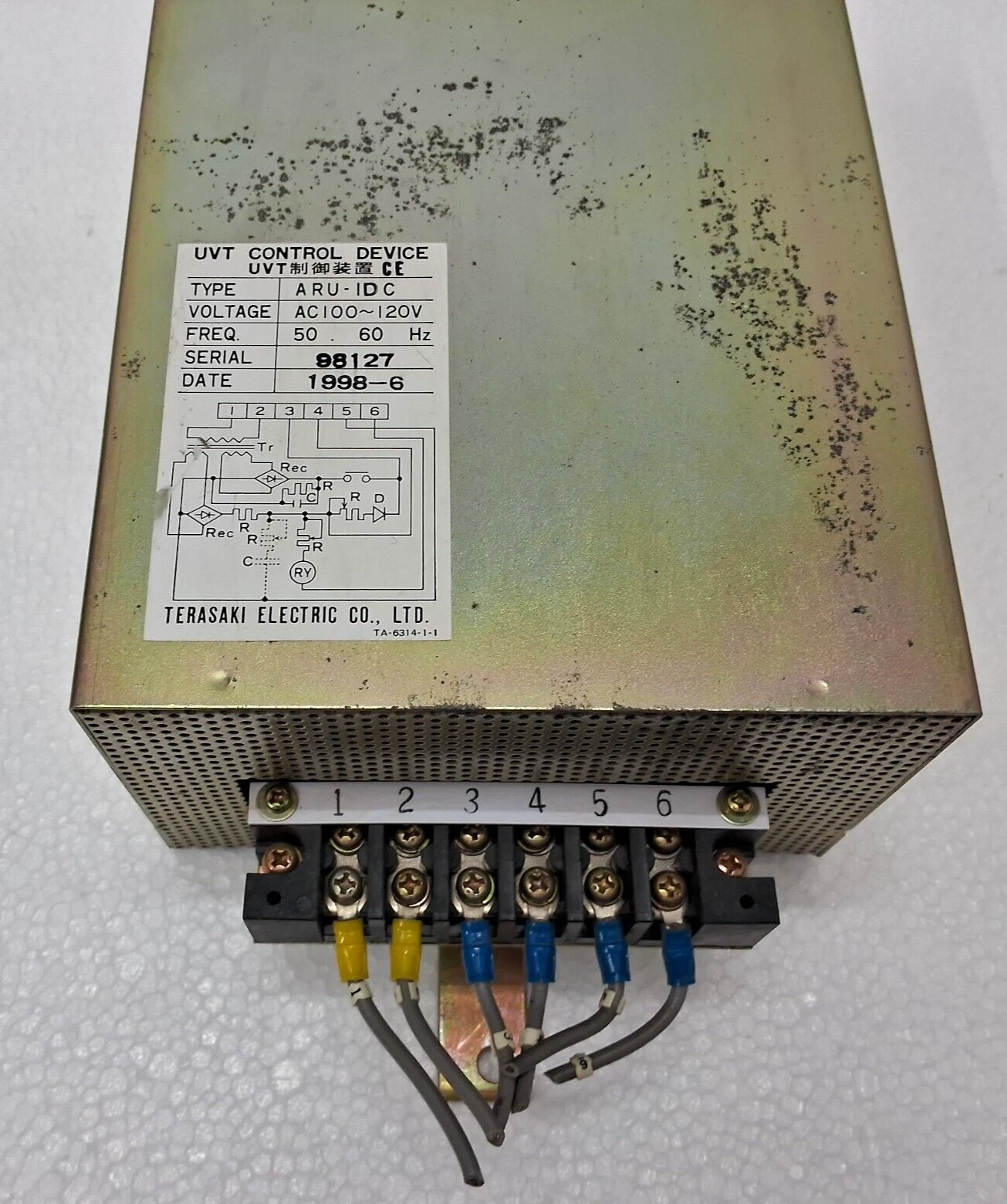

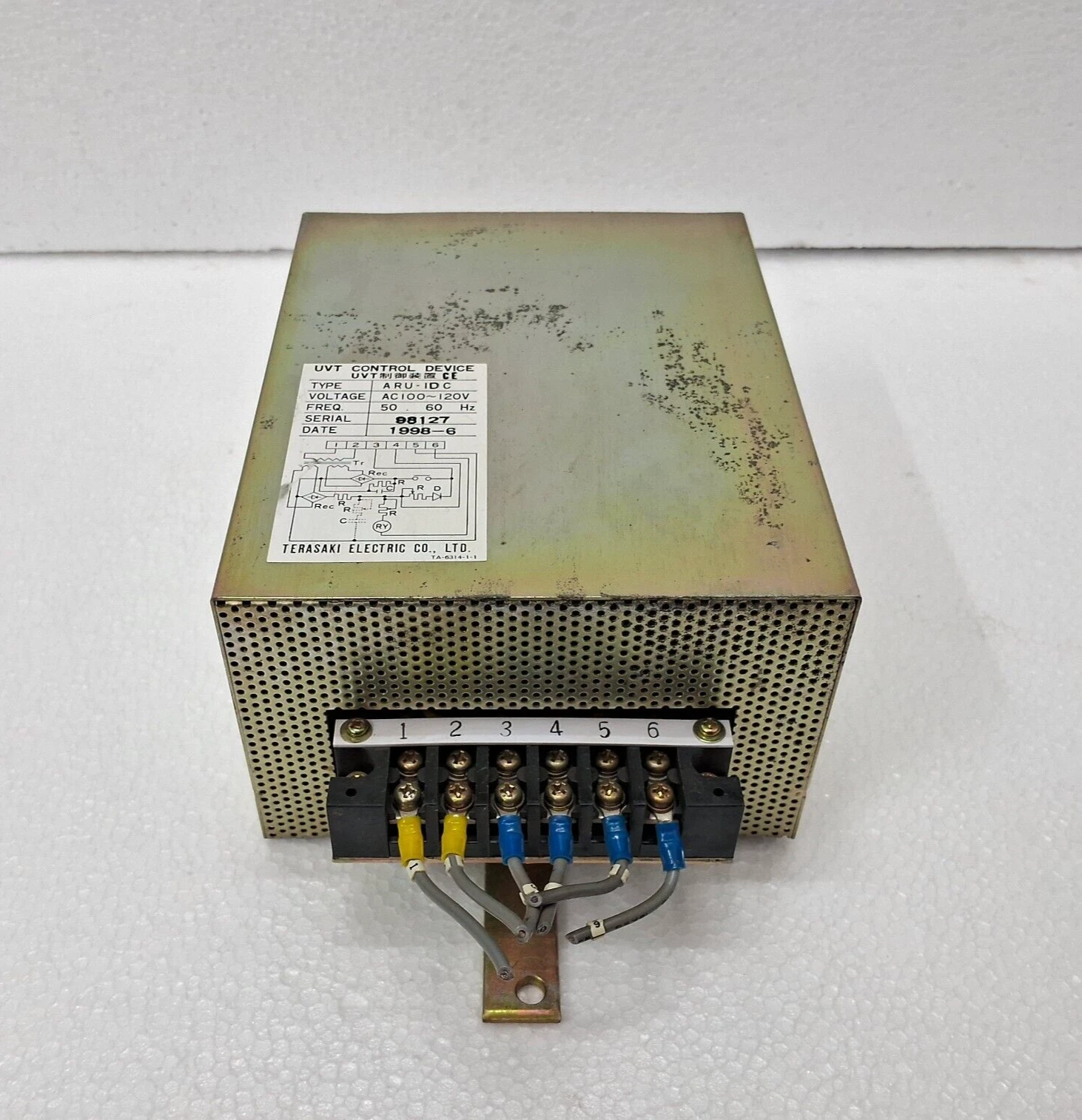

UVT: AC 110V

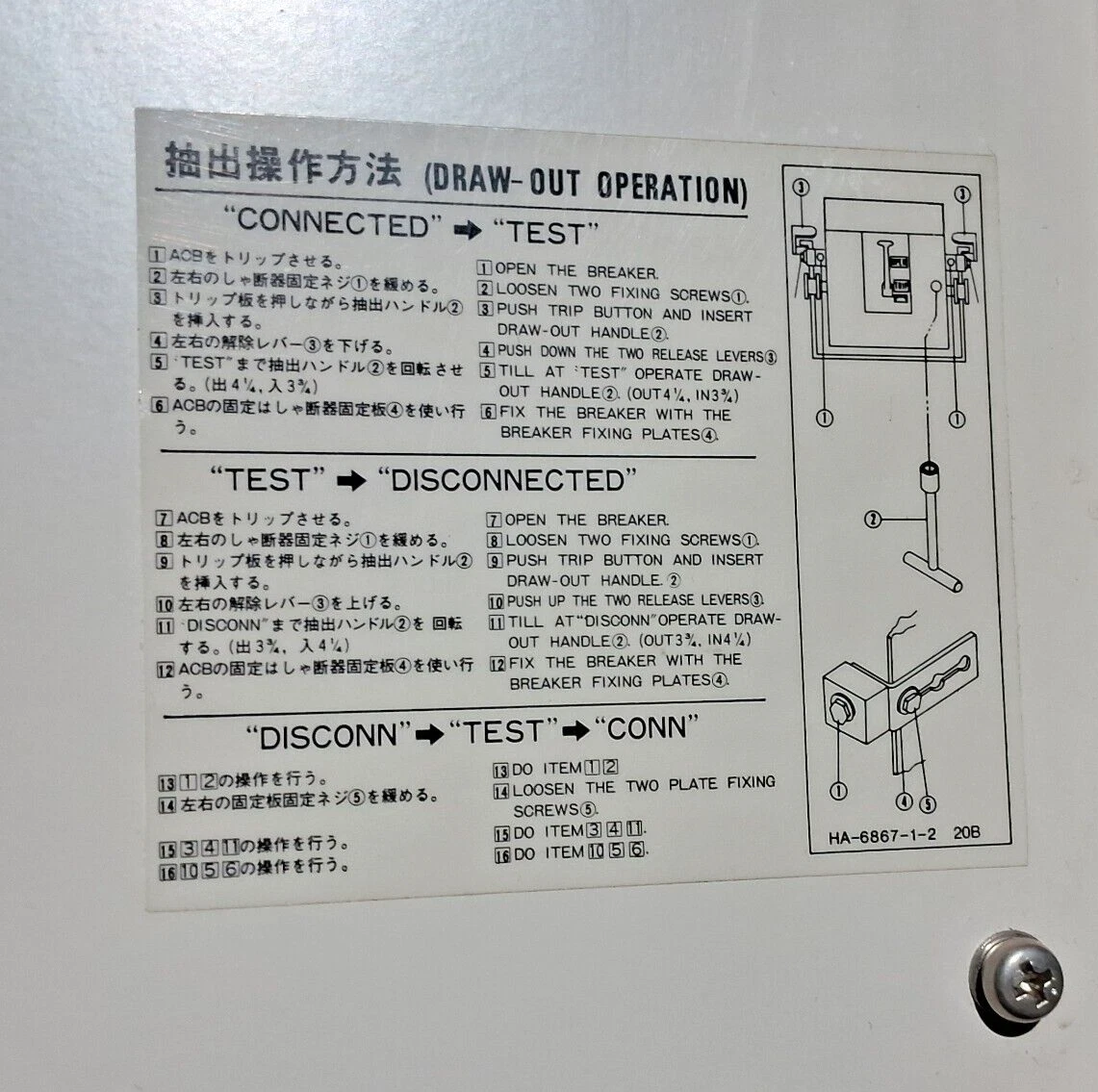

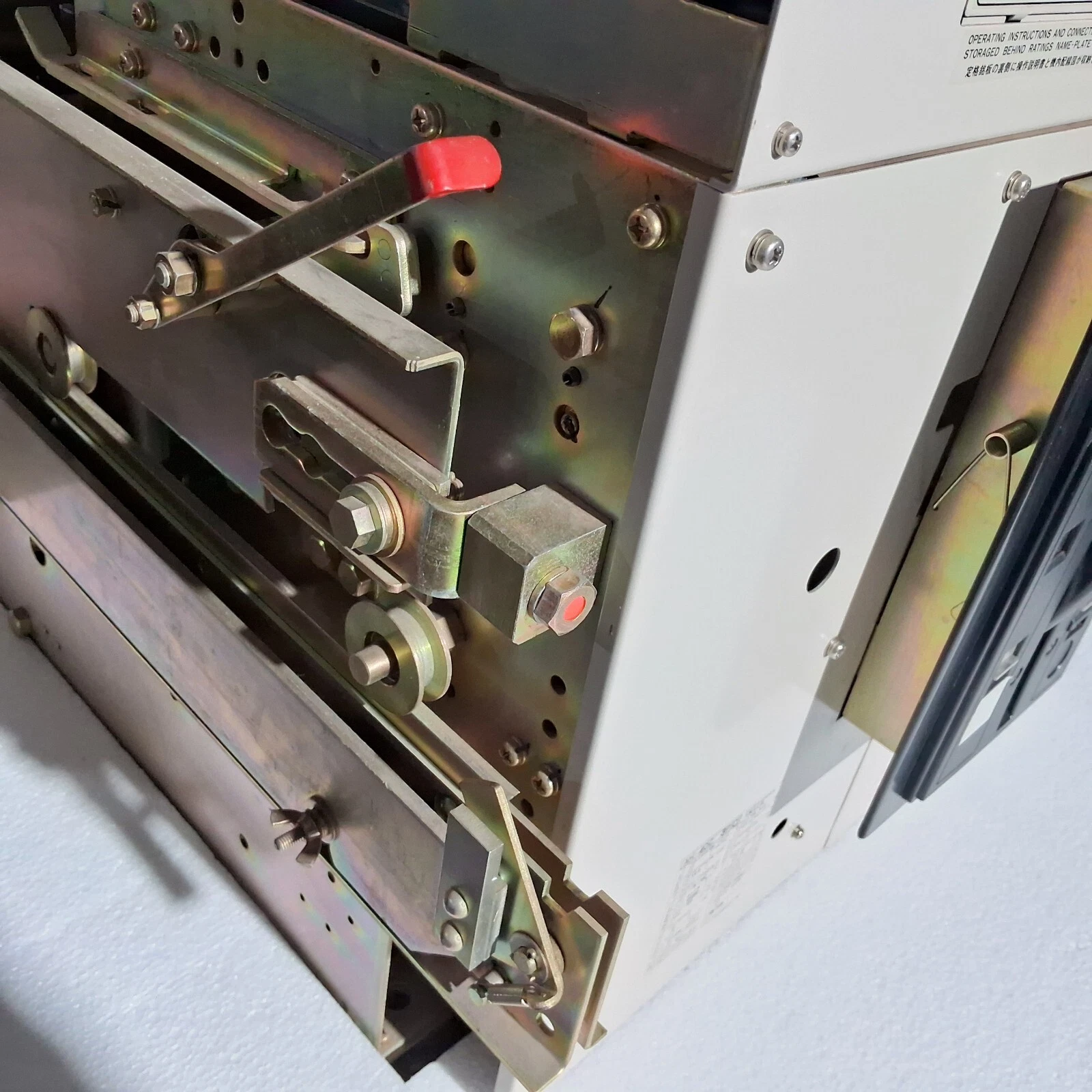

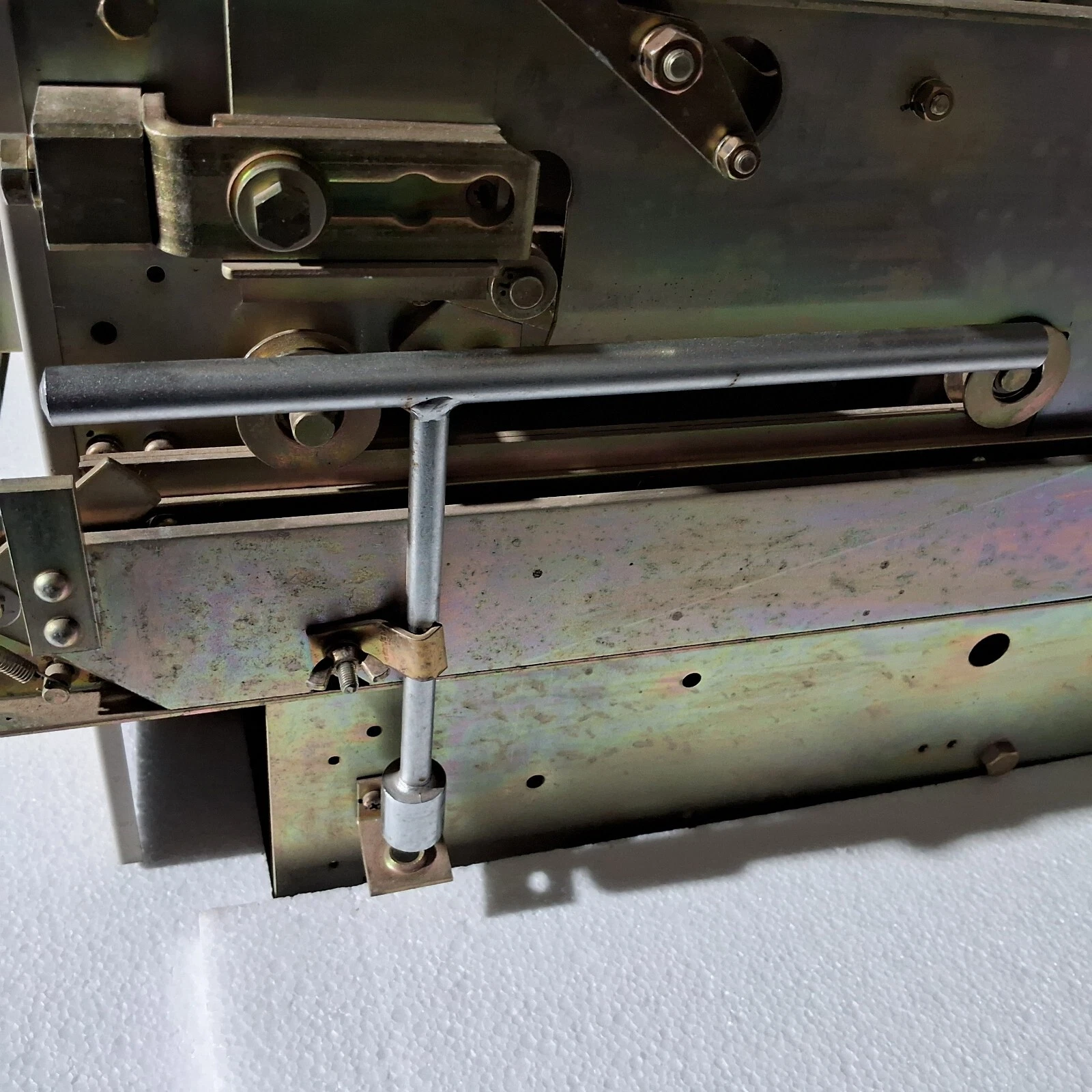

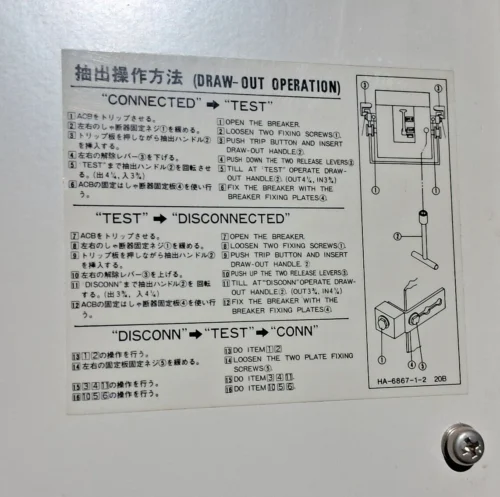

MOUNT STYLE: DRAW OUT

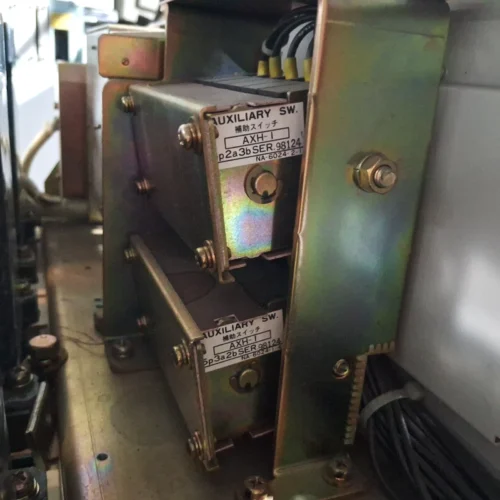

AUX.: 5a5b

OCR ALARM: 1a

TRIP INDICATOR: 1 a

INTER LOCK: 1 b

SR 718

KEY LOCK: INTER LOCK |A|

LOCK IN OPEN |B|

LOCK IN CLOSE |A|

SHUTTER: |A|

AIR CIRCUIT BREAKER

MADE IN JAPAN
